E4 LCD Pro TM

Name: E4 LCD Pro TM
Brand: INFOSEC UPS SYSTEM
SKU: PPC67508
Price: 6710.4 EUR
Availability: OutOfStock

Be the first to review this product

In stock

Only %1 left

Ref : PPC67508

Quantity:

From €9,588.00 Special Price €7,670.40

Fast and tracked delivery
Secure payment

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Fast and tracked delivery
Secure payment

Details

Description

PPC67508

More Information

More Information
Power cable	No
USB cable	No
RJ cable	No
RS232 cable	No
Câble de batterie	No
Parallel cable	No
Base for tower position	No
Multilingual Manual	Yes
Product image details and context 6	/e/4/e4-lcd-pro-1000-1500-2000-3000-visual-switch-button-zooms_4.jpg
Description (2000 carac)	La gama E4 LCD Pro ofrece un excelente nivel de seguridad eléctrica y las funciones esenciales para la protección de sus cargas estratégicas sensibles. La tecnología On Line de Doble Conversión controlada por microprocesador ofrece una corriente de salida de onda sinusoidal pura para aplicaciones de misión crítica. Los modelos equipados con esta tecnología cuentan con las últimas generaciones de IGBT en sus circuitos rectificadores y SAI. El factor de potencia de salida es óptimo, alcanzando 0,9 en todo el rango. El control por microprocesador del SAI ofrece un amplio rango de voltaje de entrada, un alto factor de potencia de entrada, baja distorsión armónica y una clara reducción de la intensidad del sonido. La gama E4 LCD Pro está equipada con las características técnicas necesarias para ofrecer un óptimo nivel de rendimiento, adaptado a las más variadas necesidades. La continuidad de servicio está garantizada en todas las circunstancias, incluso cuando el SAI está configurado en modo ECO por ejemplo.
Trade name (external documents)	E4 LCD Pro 10k TM

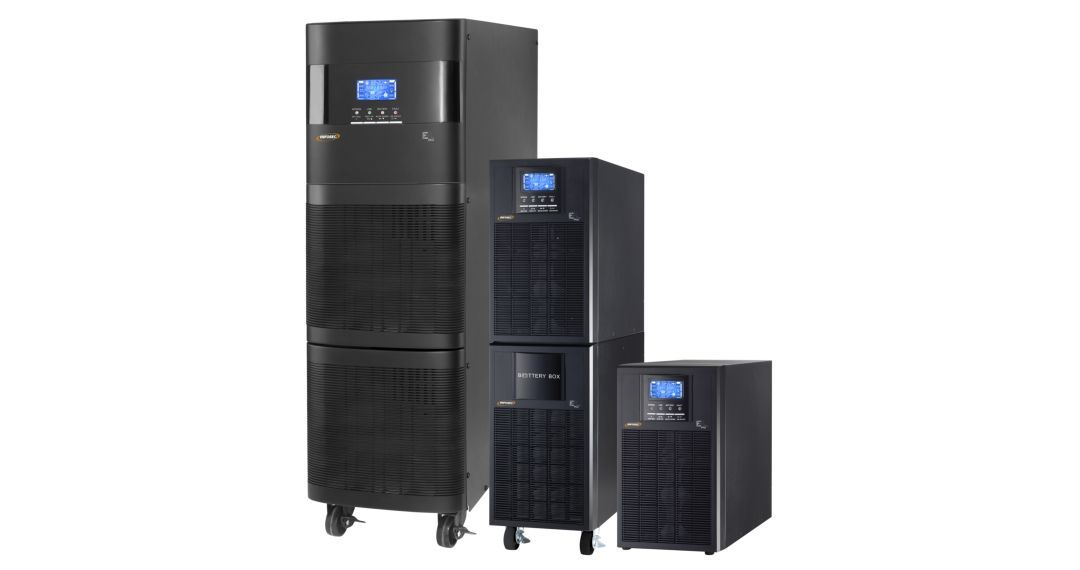

Series description (240 carac)	The E4 LCD Pro TM range is the Tri/Mono solution designed to protect sensitive high power strategic devices. It offers the essential features at an optimal level of electrical safety.
Product Description 1 H3 Title	Technology adapted to sensitive needs
Product Description 2 H3 Title	Smart features
Product Description 3 H3 Title	Designed for ease of use
Product Description 4 H3 Title	Communication
Product Description 5 H3 Title	Extended backup time version
Product Desc 6 H3 Title	Interfaces de comunicación
Product Description 1 (350 carac)	The E4 LCD ProTM range features microprocessor-controlled On Line Double Conversion technology, which delivers pure sine wave output current for mission critical applications. In order to protect the most sensitive equipment and to adapt to industrial uses requiring high power, these devices are equipped with the latest generation of IGBTs on their rectifier and UPS circuits.
Product Description 2 (350 carac)	Cold start function: in case of emergency, compensates for a total power cut by starting the UPS via battery-use.<br>- Microprocessor-based UPS control: offers a wide voltage range input, high input power factor, low harmonic distortion and marked noise level reduction.<br>- EPO (emergency power off) function: ensures safety of personnel and equipment in the event of fire or any other emergency by triggering a total and immediate shutdown of the UPS.<br>- Manual bypass: Included as standard with the static Bypass, it allows continuous power to connected equipment during UPS maintenance work via a rotary switch and thus avoids shutdown of the computer network.
Product Description 3 (350 carac)	An intuitive LCD display allows immediate viewing of the UPS status. The control panel allows direct control from the front panel: on/off, configuration of the operating mode, etc.
Product Description 4 (350 carac)	USB and RS232 communication ports and the SNMP interface allow E4 LCD Pro TM UPSs to communicate with the various workstations and computer servers they protect. The UPS has multiple communication possibilities: USB or RS232 ports can thus operate simultaneously with the SNMP interface (optional).
Product Description 5 (350 carac)	Available in Long Autonomy version (S version), without internal batteries but with additional battery cabinets.
Product Description 6 (350 carac)	Las diferentes interfaces de comunicación permiten que los SAI E4 LCD Pro se controlen de forma remota mediante el software InfoPower. Por tanto, es posible la monitorización continua del estado del SAI y de las aplicaciones conectadas: <br>- El puerto USB o RS232 permite el uso de protocolos de comunicación de infraestructuras de TI, centros de procesamiento de datos o redes de telecomunicaciones. <br>- Una ranura SNMP permite la adición de una tarjeta SNMP (opcional) controlada por el software instalado en el servidor.
Brand	INFOSEC UPS SYSTEM
Integrated cable	No
External battery connector	No
EPO slot	No
UPS technology	On Line Double Conversion
Phases	Three-phase/Single-phase
Format	Exclusively tower
Modular	No
Safety shutter	No
Dual Input	No
Voltage output type	AC
Wave form	Pure sine wave
Transfer time mains mode to battery mode (ms)	0
Transfer time UPS to bypass (ms)	0
Automatic Voltage Regulation (AVR)	No
Non-flammable plastic case	No
AC mode efficiency	>= 91%
Hot-swappable	No
Cold Start feature	No
Recharging time (minutes)	9 hours at 90% capacity
Humidity range	0 - 95%
Noise level	Less than 58dBA at 1 meter
Type	Indoor
Standard static bypass (included)	No
Manual bypass	Included internally
Parallelable	No
Varistor surge protection	No
Audible alarms	Battery mode, Low battery, Overload, Default
Communication via software available	Yes
Compatible communication software	InfoPower
SNMP	No
CE	Yes
RoHS	Yes
Ul	No

Characteristics
Presentation
Specifications
Applications
Accessories
Customer Review
Buy
Add to Cart

Characteristics

UPS technology

On Line Double Conversion

Format

Exclusively tower

Presentation

Technology adapted to sensitive needs

The E4 LCD ProTM range features microprocessor-controlled On Line Double Conversion technology, which delivers pure sine wave output current for mission critical applications. In order to protect the most sensitive equipment and to adapt to industrial uses requiring high power, these devices are equipped with the latest generation of IGBTs on their rectifier and UPS circuits.

Smart features

Cold start function: in case of emergency, compensates for a total power cut by starting the UPS via battery-use.
- Microprocessor-based UPS control: offers a wide voltage range input, high input power factor, low harmonic distortion and marked noise level reduction.
- EPO (emergency power off) function: ensures safety of personnel and equipment in the event of fire or any other emergency by triggering a total and immediate shutdown of the UPS.
- Manual bypass: Included as standard with the static Bypass, it allows continuous power to connected equipment during UPS maintenance work via a rotary switch and thus avoids shutdown of the computer network.

Designed for ease of use

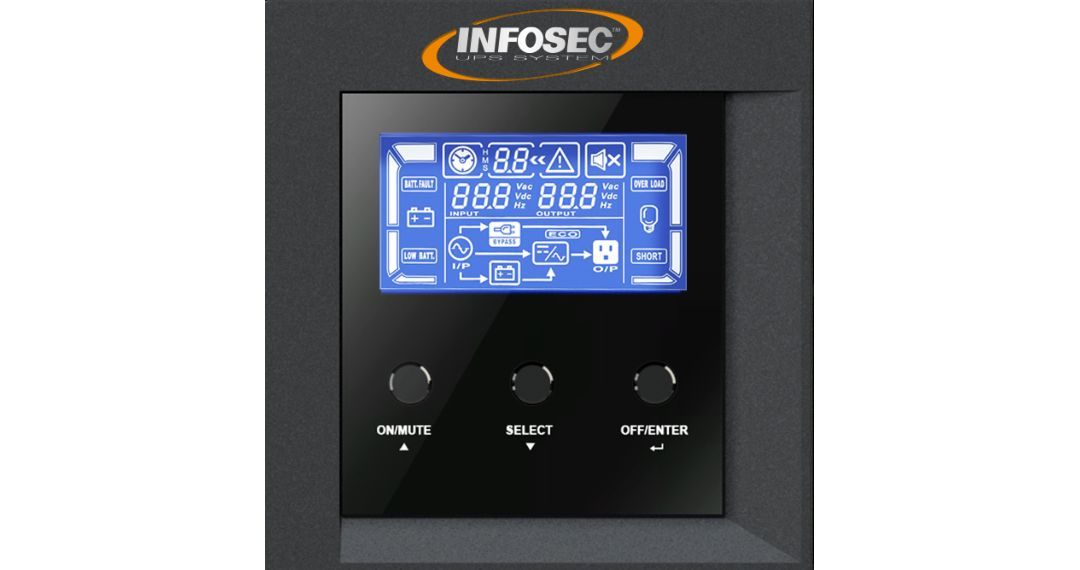

An intuitive LCD display allows immediate viewing of the UPS status. The control panel allows direct control from the front panel: on/off, configuration of the operating mode, etc.

Communication

USB and RS232 communication ports and the SNMP interface allow E4 LCD Pro TM UPSs to communicate with the various workstations and computer servers they protect. The UPS has multiple communication possibilities: USB or RS232 ports can thus operate simultaneously with the SNMP interface (optional).

Extended backup time version

Available in Long Autonomy version (S version), without internal batteries but with additional battery cabinets.

Interfaces de comunicación

Las diferentes interfaces de comunicación permiten que los SAI E4 LCD Pro se controlen de forma remota mediante el software InfoPower. Por tanto, es posible la monitorización continua del estado del SAI y de las aplicaciones conectadas:
- El puerto USB o RS232 permite el uso de protocolos de comunicación de infraestructuras de TI, centros de procesamiento de datos o redes de telecomunicaciones.
- Una ranura SNMP permite la adición de una tarjeta SNMP (opcional) controlada por el software instalado en el servidor.

Technical specifications

Technical characteristics

General specifications

UPS technology: On Line Double Conversion

Phases: Three-phase/Single-phase

Format: Exclusively tower

Output technical characteristics

Voltage output type: AC

Wave form: Pure sine wave

Efficiency

AC mode efficiency: >= 91%

Battery

Recharging time (minutes): 9 hours at 90% capacity

Material: sealed lead

Indicators & alarms

Audible alarms: Battery mode, Low battery, Overload, Default

Bypass

Manual bypass: Included internally

Management and communication

Communication via software available: Yes

Compatible communication software: InfoPower

Environment

Humidity range: 0 - 95%

Noise level: Less than 58dBA at 1 meter

Type: Indoor

Norms

CE: Yes

RoHS: Yes

Documentation and software

File Downloads

Documentation

Flyer

(Size: 1.2 MB)

Guide d'utilisation

Guide

(Size: 6.7 MB)

Package contents

Contenu du packaging

Multilingual Manual: Yes
