From €571.20 Regular Price €714.00


UPS technology

On Line Double Conversion


Exclusively tower


The most reliable technologies

On Line Double Conversion technology delivers perfect sine wave output current and provides connected equipment with effective protection against power grid surges.

Features adapted to all situations

Equipped with intelligent features (microprocessor control, Eco operating mode or even cold start), the E4 VALUE range offers RS 232 and/or USB communication ports to communicate with the various protected devices. The front LED or LCD displays (depending on the model) allow immediate viewing of the UPS status from the front panel (on & off, configuration of the operating mode, etc.).

Smart features

- High power factor output (0.9 for E4 VALUE + 6000 and 10 kVA models)
- ECO operating mode: reduces energy consumption and costs. Allows an instant return to On Line Double Conversion when necessary
- Backup time: up to 30 minutes for the protection of a server and 2 computers e.g. (depending on the power of the connected devices)
- Cold start function

Manual bypass maintenance (6/10 kVA models)

- Included as standard with the static bypass for the E4 VALUE + 6000 and 10 kVA models
- Continuous power supply to connected equipment during maintenance work on the UPS via a rotary switch
- Guaranteed staff safety without power interruption

Designed for simple use

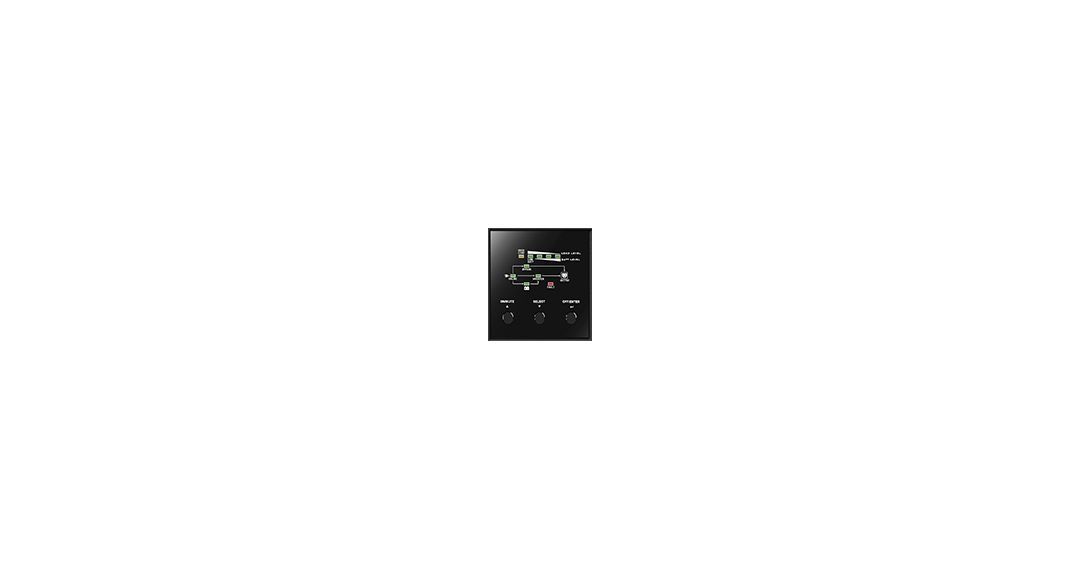

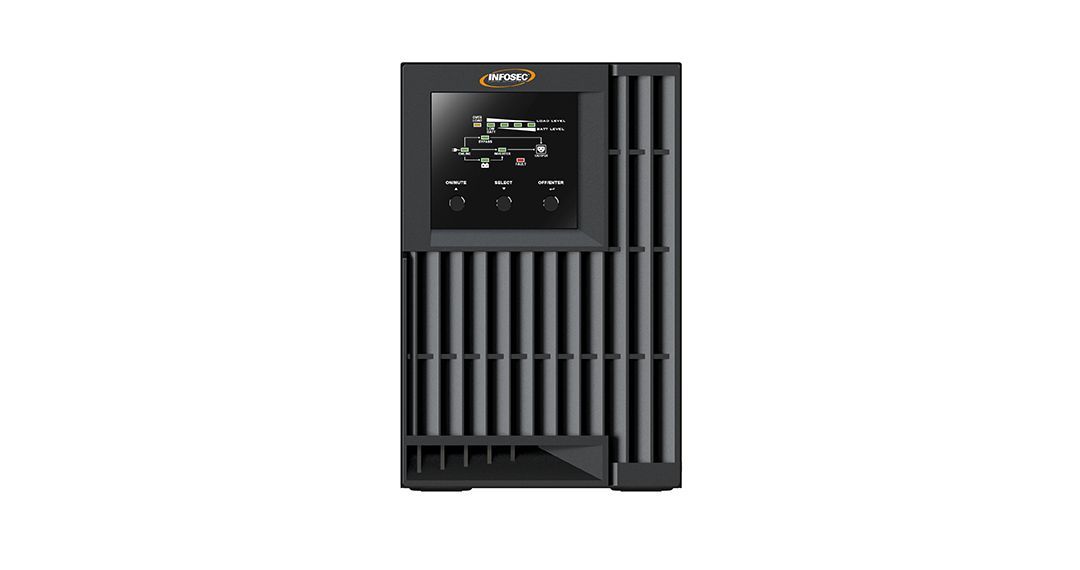

An intuitive display allows immediate visualization of the status of the UPS (on/off) and simple configuration of the operating mode, etc. :
- LED display for 1000 to 3000 VA models
- LCD display for 4000 VA to 10k VA models

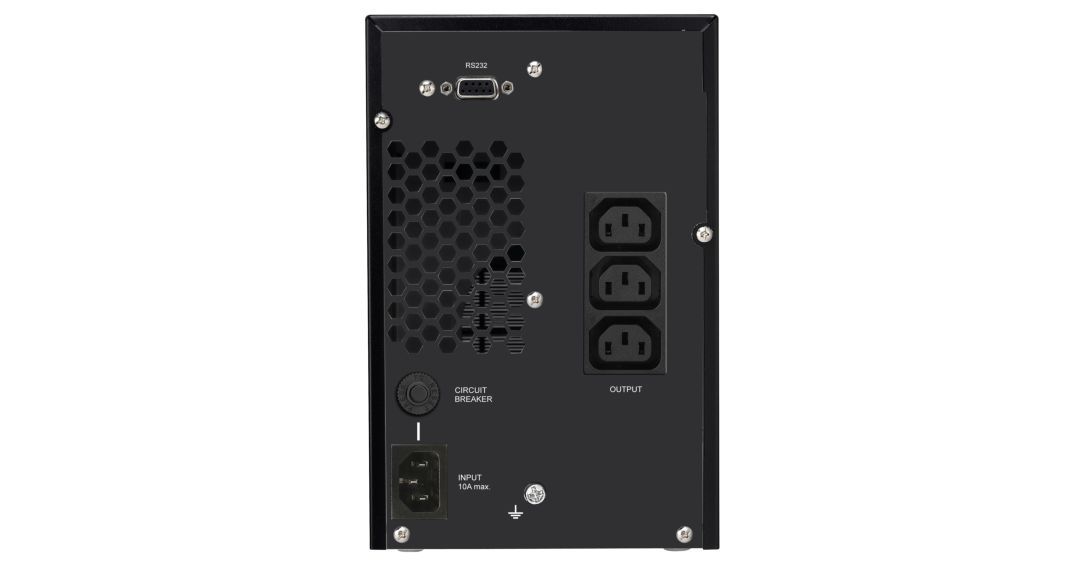

The RS 232 and/or USB communication ports allow the E4 Value to communicate with the various computers and computer servers they protect:
- RS232 port for 1000 to 3000VA models
- USB and RS 232 ports for 4000VA to 10 kVA models

Technical specifications

General specifications

UPS technology: On Line Double Conversion
Phases: Single-phase/Single-phase
Format: Exclusively tower
Safety shutter: Yes

Input technical characteristics

Number of primary phases: 1
Nominal Voltage (VAC): [100/110/115/120/127VAC] or [200/208/220/230/240VAC]

Output technical characteristics

Voltage output type: AC
Wave form: Pure sine wave


AC mode efficiency: 88


Charging voltage: 27.4VDC ± 1%
Recharging time (minutes): 4 hours at 90% capacity
Material: sealed lead

Indicators & alarms

Audible alarms: Low battery, Overload, Default

Management and communication

Communication via software available: Yes
Compatible communication software: InfoPower


Humidity range: 20-90 % relative humidity @ 0- 40°C (without condensation)
Noise level: Less than 50dBA at 1 meter
Type: Indoor


CE: Yes
RoHS: Yes

Contenu du packaging

Multilingual Manual: Yes
