Power cable
Power cable:
No
Multilingual Manual
Multilingual Manual:
Yes
Screw kit included
Screw kit included:
No
Manual languages
Manual languages:
en, fr, ar
Number of cables
Number of cables:
1
Picto image type of output outlet
Picto image type of output outlet:
no_selection
Picto Image RJ protection
Picto Image RJ protection:
no_selection
Picto image surge protector
Picto image surge protector:
no_selection
Picto image child protection
Picto image child protection:
no_selection
Picto image cable length
Picto image cable length:
no_selection
Picto image wall mount system
Picto image wall mount system:
no_selection
Picto image warranty
Picto image warranty:
no_selection
Picto image user guide
Picto image user guide:
no_selection
Picto image insurance
Picto image insurance:
no_selection
Product image details and context 10
Product image details and context 10:
no_selection
Product image details and context 9
Product image details and context 9:
no_selection
Image 360
Image 360:
no_selection
Product image details and context 6
Product image details and context 6:
no_selection
Product image details and context 7
Product image details and context 7:
no_selection
Product image details and context 8
Product image details and context 8:
no_selection
Description (2000 carac)
Description (2000 carac):

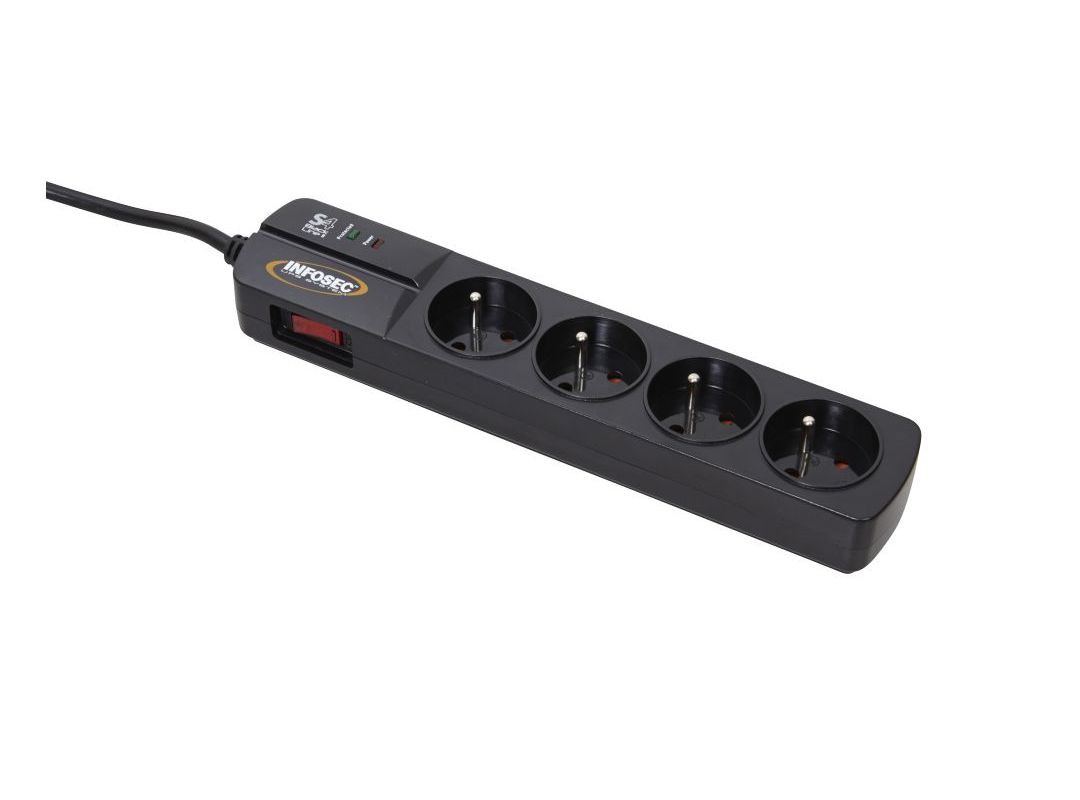

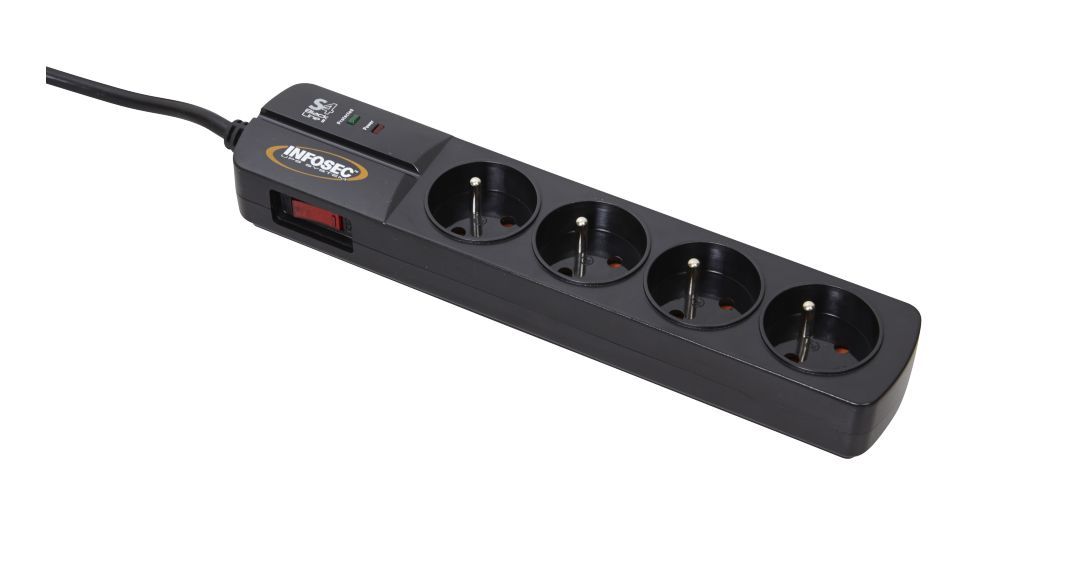

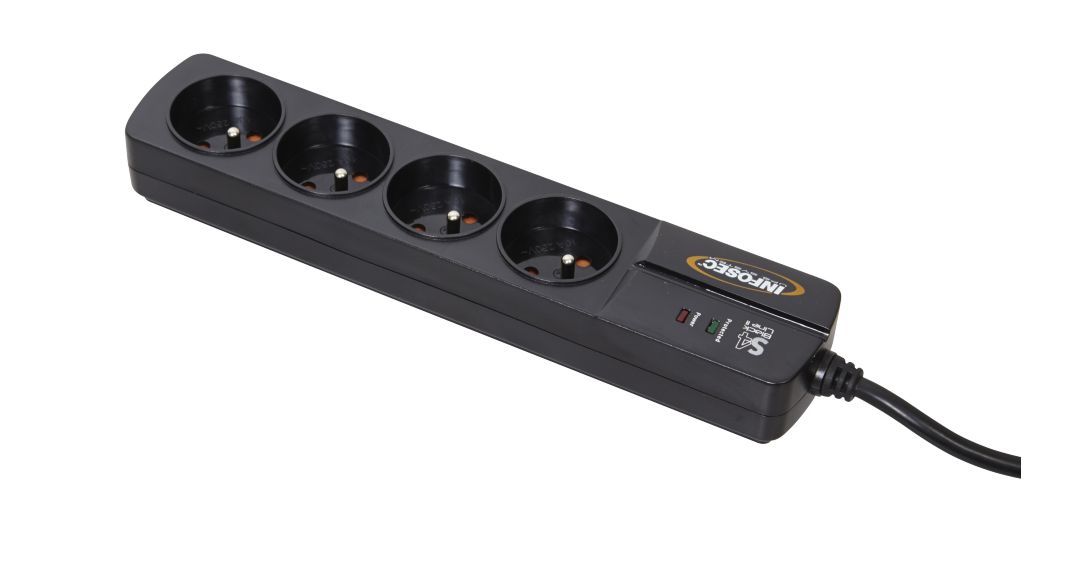

Simple, practical surge arresters to extend the life of your electrical devices. The Black Line II, available in 4, 5 and 6 outlets, provides effective protection against voltage spikes and the risk of lightning. Surges and current spikes are very often the cause of data loss or IT equipment malfunctions. Repeated electromagnetic disturbances irreparably damage sensitive household and electronic devices. The S Black Line II range is equipped with 4, 5 or 6 French outlets to adapt to all configurations. Household equipment can be connected with complete peace of mind: TV, Home cinema, game console, Hi-Fi set, etc. With a switch including a 10A resettable thermal circuit breaker, the Black Line II range provides protection against overloads. With a 1.5m power cable, the Black Line II range surge protectors can be integrated discreetly into your living room. They are also equipped with a wall mounting system. As standard, these outlets are child-safe.
Trade name (external documents)
Trade name (external documents):
S4 Schwarze Linie II
Headline
Headline:
Überspannungen und Spannungsspitzen sind sehr oft die Ursache für Datenverluste oder Schäden ann Computergeräten. Wiederholte magnetische Störungen verursachen irreparable Schäden an empfindlichen Haushalts- und Elektronikgeräten.
Series description (240 carac)
Series description (240 carac):
Simple & practical surge protected outlets to extend the life of your electrical devices. The Black Line II, available in 4, 5 and 6 outlets, provides effective protection against voltage peaks and the risk of lightning.
Product Description 1 H3 Title
Product Description 1 H3 Title:
Ad-hoc solution
Product Description 2 H3 Title
Product Description 2 H3 Title:
Easy to use and discreet design
Product Description 1 (350 carac)
Product Description 1 (350 carac):
The S Black Line II range is equipped with 4, 5 or 6 French outlets to adapt to all configurations. Household equipment can be connected with complete peace of mind: TV, Home cinema, game console, Hi-Fi set, etc.
Product Description 2 (350 carac)
Product Description 2 (350 carac):
With a 1.5 m cable, the surge protectors from the Black Line II range will discreetly fit into your living room. Standard child safety outlets.
Warranty (year)
Warranty (year):
2
Insurance (USD)
Insurance (USD):
2500
SKU - 5 digit
SKU - 5 digit:
61294
Product condition
Product condition:
New
Product Technical Version
Product Technical Version:
1
Brand
Brand:
INFOSEC UPS SYSTEM
Product length (mm)
Product length (mm):
256.000000
Product width (mm)
Product width (mm):
53.000000
Packed gross weight (kg)
Packed gross weight (kg):
0.460000
Power cable length (m)
Power cable length (m):
150.000000
Integrated cable
Integrated cable:
Yes
Outlets type
Outlets type:
FR outlet
total number of outlets
total number of outlets:
4
FR outlets type
FR outlets type:
10A
Safety shutter
Safety shutter:
Yes
Wall mountable system
Wall mountable system:
Yes
Non-flammable plastic case
Non-flammable plastic case:
Yes
Maximum humidity (%)
Maximum humidity (%):
40
Minimum humidity (%)
Minimum humidity (%):
0
Max temperature (°C)
Max temperature (°C):
40
Min temperature (°C)
Min temperature (°C):
-5
Humidity range
Humidity range:
0 to 40 %
Type
Type:
Indoor
Varistor surge protection
Varistor surge protection:
Yes
Surge protector type
Surge protector type:
Type 3
Clipping voltage
Clipping voltage:
775 V
Maximum power (W)
Maximum power (W):
2500 W
Total energy flow (Joules)
Total energy flow (Joules):
175 J
Maximum current peak
Maximum current peak:
6 000 A
Maximum voltage peak
Maximum voltage peak:
6 kV
Response time
Response time:
< 1 ns
Connector type
Connector type:
-
Clipping voltage
Clipping voltage:
775 V
Maximum flow
Maximum flow:
175 J
Sat protection : attenuation (db)
Sat protection : attenuation (db):
Up to 75 dB
Frequency range
Frequency range:
150 kHz ~ 100 MHz
Attenuation
Attenuation:
Jusqu'à 75 dB
CE
CE:
Yes
RoHS
RoHS:
Yes
Ul
Ul:
No
Item Returns
Item Returns:
This item can be returned
