S5 USB NEO

In stock
61298N1
Be the first to review this product
Regular Price €39.72 Special Price €13.90 €0.12
Add to Compare
  • Fast and tracked delivery
  • Secure payment

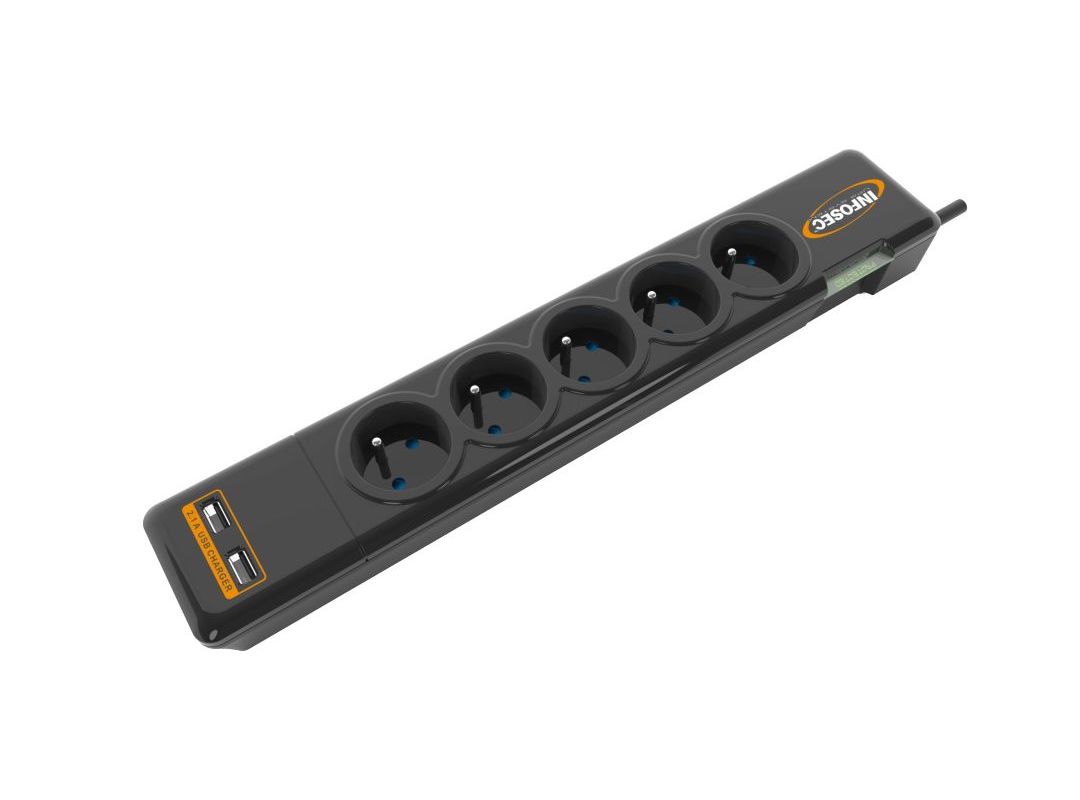

main product photo
Add to Compare
  • Fast and tracked delivery
  • Secure payment
Power cable: No
Multilingual Manual: Yes
Screw kit included: No
Number of cables: 1
Picto image type of output outlet: no_selection
Picto Image RJ protection: no_selection
Picto image surge protector: no_selection
Picto image child protection: no_selection
Picto image cable length: no_selection
Picto image wall mount system: no_selection
Picto image warranty: no_selection
Picto image user guide: no_selection
Picto image insurance: no_selection
Product image details and context 10: no_selection
Product image details and context 9: no_selection
Image 360: no_selection
Product image details and context 6: no_selection
Product image details and context 7: no_selection
Product image details and context 8: no_selection
Description (2000 carac): The S USB NEO range combines the features of a surge protector and USB charger. S1 USB Neo protects connected equipment from lightning strikes and surges, thus extending their lifespan! Connected devices benefit from insurance worth up to 50,000 Euros. The S1 USB Neo is guaranteed for 2 years and will be replaced free of charge during this period if damaged by a transient overvoltage.
Trade name (external documents): S5 USB NEO
Headline: Surge protection
Series description (240 carac): The S USB NEO range combines the features of surge protector and a USB charger. Simple and practical, these surge protectors will protect your connected equipment from transient voltages and lightning. The lifespan of your devices will be extended!
Product Description 1 H3 Title: A multi-format power source
Product Description 2 H3 Title: S1 USB NEO
Product Description 3 H3 Title: Easy to use and smart design
Product Description 1 (350 carac): The S USB NEO range of surge protectors protects connected equipment from transient voltages, current peaks and interference from the power supply network. Thanks to its French outlets (1 for the S1 USB NEO and 5 for the S5 USB NEO) and its 2 USB chargers, the S USB NEO range provides easily accessible and safe power to household devices and sensitive electronics. The S USB NEO range is equipped with a green indicator light indicating that the lightning protection is operational.
Product Description 2 (350 carac): The S USB NEO range is perfectly suited to all domestic and multimedia equipment: Box, laptop, TV, home cinema, game console, Hi-Fi set, smartphones, tablets.
Product Description 3 (350 carac): The S1 USB NEO's French outlet is ideal for protecting a laptop or even safely powering a speaker.
Warranty (year): 2
Insurance (USD): 50000
SKU - 5 digit: 61298
Product condition: New
Product Technical Version: 1
Brand: INFOSEC UPS SYSTEM
Product length (mm): 371.000000
Product height (mm): 39.500000
Product width (mm): 64.000000
Packed gross weight (kg): 0.660000
Power cable length (m): 1.500000
Integrated cable: Yes
Outlets type: FR outlet
total number of outlets: 5
FR outlets type: 16A
Safety shutter: Yes
Wall mountable system: Yes
Non-flammable plastic case: Yes
Maximum humidity (%): 85
Minimum humidity (%): 20
Max temperature (°C): 40
Min temperature (°C): 0
Humidity range: 20 to 85 % relative humidity (without condensation)
Type: Indoor
Varistor surge protection: No
Surge protector type: Type 3
Clipping voltage: Uoc : 6kV, Up:1.1kV
Total energy flow (Joules): 306 J
Maximum current peak: 12 000 A
Response time: < 1 ns
USB charger : quantity: 2
USB charger : power (A): 2.100000
Connector type: -
Clipping voltage: Uoc : 6kV, Up:1.1kV
Maximum flow: 306 J
Sat protection : attenuation (db): Up to 40 dB
Frequency range: 150 kHz ~ 100 MHz
Attenuation: Jusqu'à 40 dB
CE: Yes
RoHS: Yes
Ul: Yes
Item Returns: This item can be returned

Characteristics

Outlets type

FR outlet

Warranty (year)

2

Presentation

A multi-format power source

The S USB NEO range of surge protectors protects connected equipment from transient voltages, current peaks and interference from the power supply network. Thanks to its French outlets (1 for the S1 USB NEO and 5 for the S5 USB NEO) and its 2 USB chargers, the S USB NEO range provides easily accessible and safe power to household devices and sensitive electronics. The S USB NEO range is equipped with a green indicator light indicating that the lightning protection is operational.

S1 USB NEO

The S USB NEO range is perfectly suited to all domestic and multimedia equipment: Box, laptop, TV, home cinema, game console, Hi-Fi set, smartphones, tablets.

Easy to use and smart design

The S1 USB NEO's French outlet is ideal for protecting a laptop or even safely powering a speaker.

Technical specifications

Technical characteristics

General specifications

Safety shutter: Yes
Wall mountable system: Yes

Physical characteristics

Product length (mm): 371
Product height (mm): 39.50
Product width (mm): 64
Packed gross weight (kg): 0.66
Power cable length (m): 1.50

Electrical specifications

Surge protector type: Type 3
Clipping voltage: Uoc : 6kV, Up:1.1kV
Total energy flow (Joules): 306 J
Maximum current peak: 12 000 A
Response time: < 1 ns

Electrical protection

Non-flammable plastic case: Yes

Tel./data protection

Connector type: -
Clipping voltage: Uoc : 6kV, Up:1.1kV
Maximum flow: 306 J

Satellite protection

Sat protection : attenuation (db): Up to 40 dB

Filtering

Frequency range: 150 kHz ~ 100 MHz
Attenuation: Jusqu'à 40 dB

Input connection

Integrated cable: Yes

Output connection

Outlets type: FR outlet
total number of outlets: 5
FR outlets type: 16A

Chargers

USB charger : quantity: 2
USB charger : power (A): 2.10

Environment

Maximum humidity (%): 85
Minimum humidity (%): 20
Max temperature (°C): 40
Humidity range: 20 to 85 % relative humidity (without condensation)
Type: Indoor

Norms

CE: Yes
RoHS: Yes
Ul: Yes
Documentation and software

File Downloads

Guide d'utilisation
pdf
Guide
(Size: 1.2 MB)
Package contents

Contenu du packaging

Multilingual Manual: Yes
Number of cables: 1
Accessoires et options
