FR outlet
S8
Out of stock
61272N1
- Fast and tracked delivery
- Secure payment
Characteristics
Outlets type
Warranty (year)
2
Presentation
Easy to use
The new range of INFOSEC surge protector allows a large number of devices to be connected safely and easily thanks to: Active protection indicator Resettable fuse in the event of an overload Child protection Earth connection indicator On/off switch
Reliable protection
Power surges and current spikes are very often the cause of data loss or damaged computer equipment. Repeated magnetic disturbances irreparably damage sensitive household and electronic devices. With the S'Classic range, enjoy your equipment in complete safety and comfort thanks to the wall mounting system, the 1.80 meter cable, and standard child protection.
Internet Box
The S1 LAN's single French outlet is ideal for protecting your Internet box or your fax machine against grid transients. Its RJ 11/45 connector protects the Tel/network line against surges and lightning.
TV equipment, digital entertainment
Thanks to the S5?s 5 French outlets, protect your living room and Hifi equipment against surges and lightning
Multimedia computer
In addition to the 5 protected outlets, the S5 LAN has an RJ 11/45 connector for optimal protection of your devices Internet/Ethernet connection such as fax, ADSL box ...
Electronic equipment

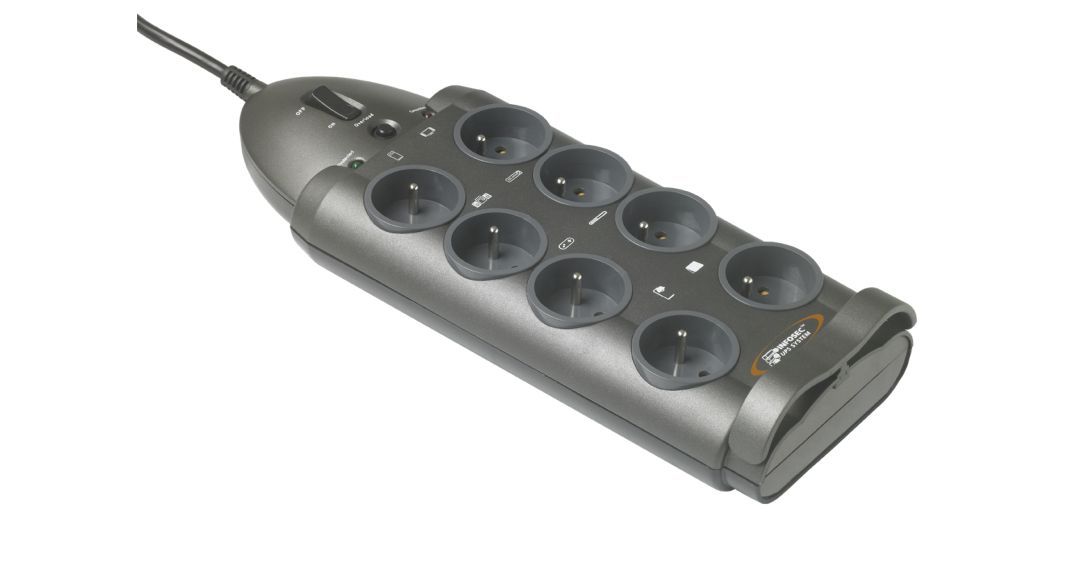

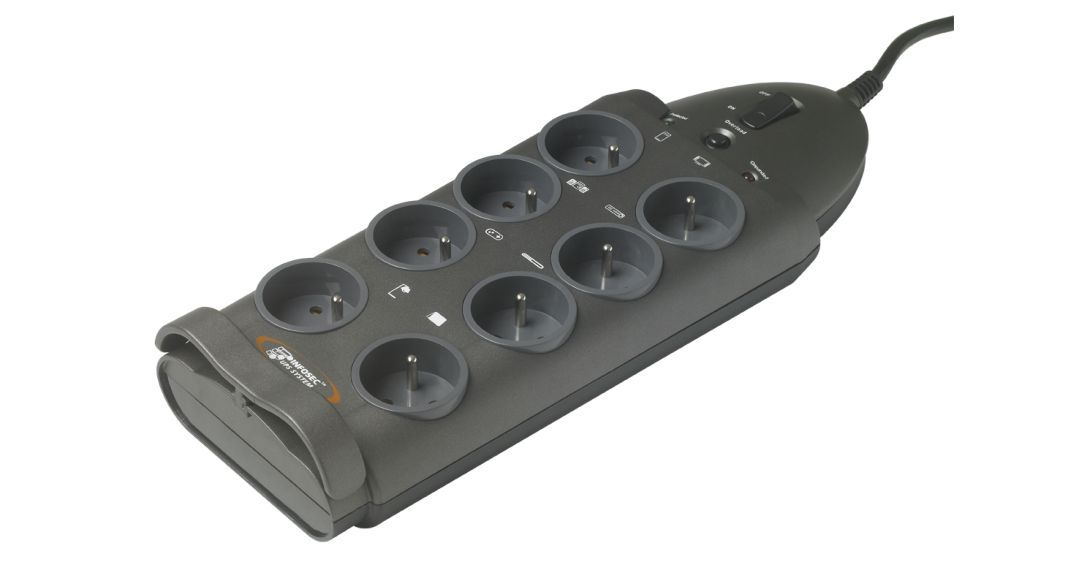

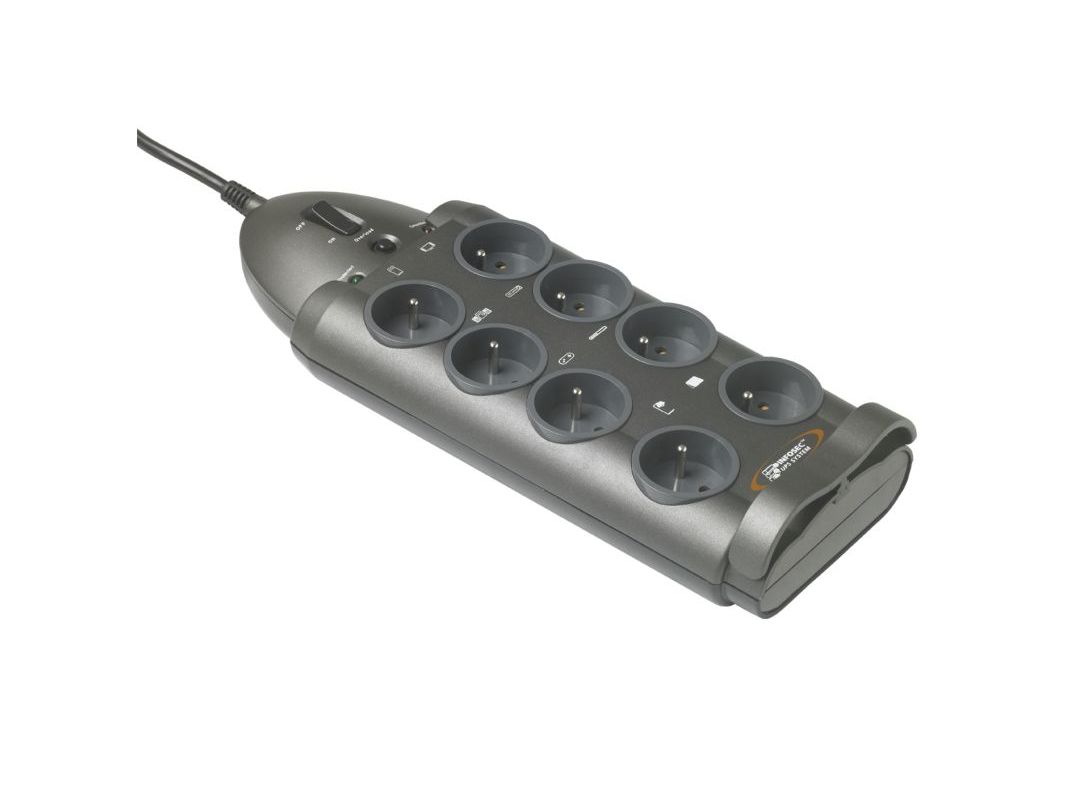

Your Hi-Fi and multimedia set will be protected from any surge thanks to the 8 protected outlets of the S8.
Technical specifications
General specifications
Safety shutter: Yes
Wall mountable system: Yes
Physical characteristics
Product length (mm): 360
Product height (mm): 63
Product width (mm): 135
Packed gross weight (kg): 1.04
Power cable length (m): 1.80
Electrical specifications
Surge protector type: Type 3
Maximum current peak: 110000 A (3 lignes)
Response time: < 1 ns
Electrical protection
Non-flammable plastic case: Yes
Tel./data protection
Connector type: -
Clipping voltage: 775 V
Filtering
Frequency range: 150 kHz ~ 100 MHz
Input connection
Integrated cable: Yes
Output connection
Outlets type: FR outlet
total number of outlets: 8
FR outlets type: 10A
Environment
Maximum humidity (%): 40
Max temperature (°C): 40
Min temperature (°C): -5
Humidity range: 0 to 40 %
Type: Indoor
Norms
CE: Yes
RoHS: Yes
File Downloads
Guide d'utilisation
Contenu du packaging
Multilingual Manual: Yes
Number of cables: 1
