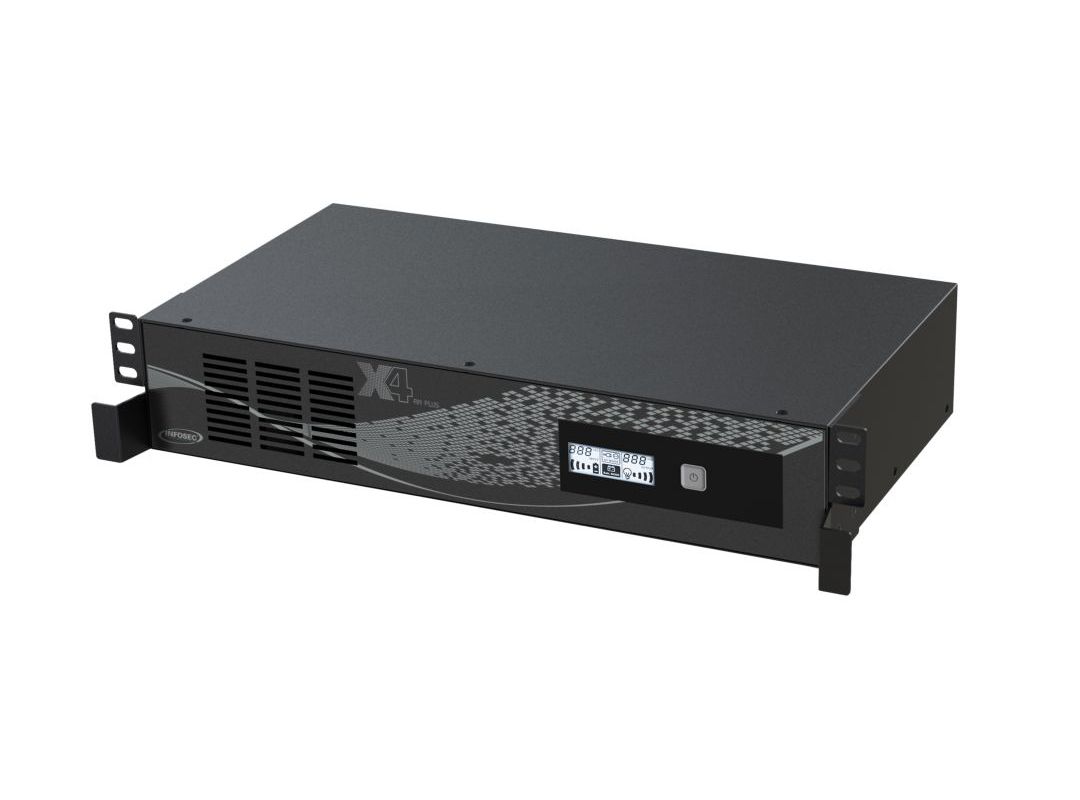

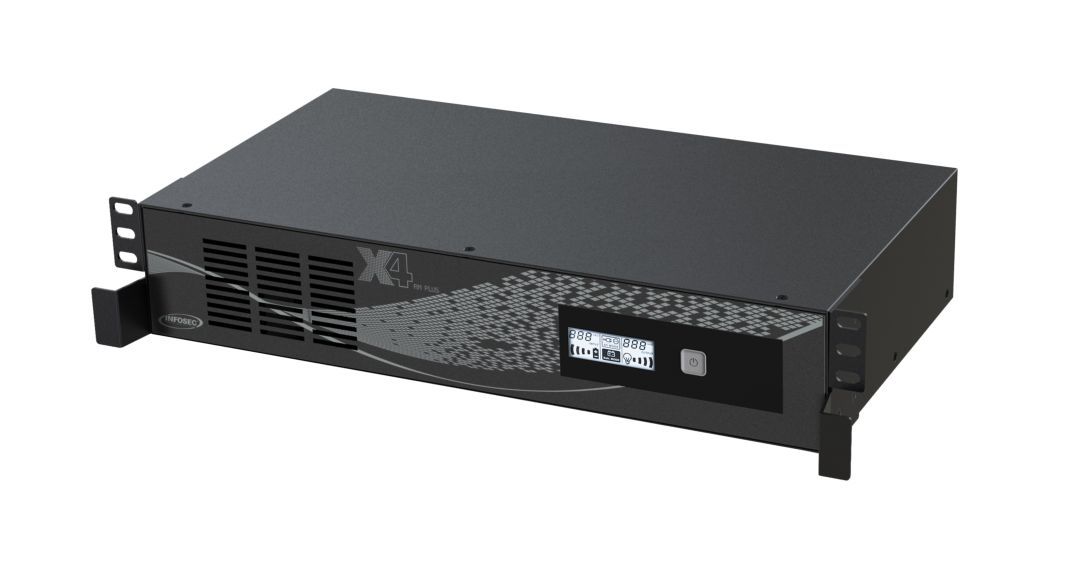

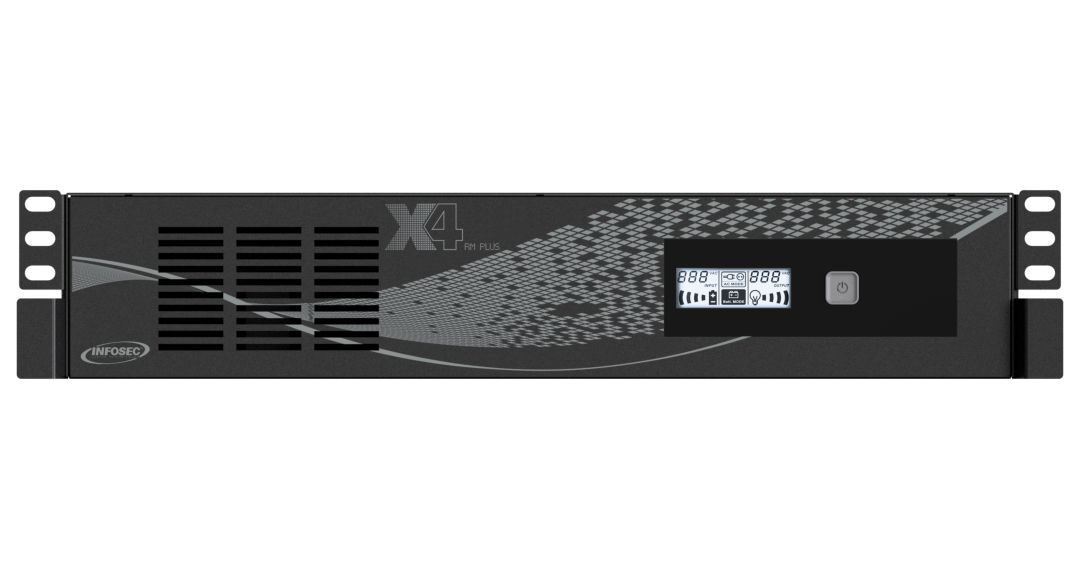

X4 3000 RM Plus

Out of stock
66065N1
Be the first to review this product
Regular Price €1,794.00 Special Price €1,435.20
Notify me when this product is in stock
Add to Compare
  • Fast and tracked delivery
  • Secure payment
main product photo
Add to Compare
  • Fast and tracked delivery
  • Secure payment
Accessoires et options
Power cable: No
USB cable: No
RJ cable: No
Câble de batterie: No
Rack mounting brackets: No
Multilingual Manual: Yes
License number card: No
Number of cables: 3
Description (2000 carac): The X4 RM Plus UPS range is dedicated to the electrical protection of networks and IT loads against power supply problems and electrical disturbances. Equipped with microprocessor-controlled Line Interactive technology, X4 RM Plus UPSs offer reliable protection to your connected equipment. In the event of a power cut, the connected equipment remains on for up to 65 minutes depending on the load, which ensures service continuity and, if necessary, backup of essential data. -Built-in charger reducing battery charging time (90% in just 4 hours) and thus ensuring maximum recharging between successive power cuts -Automatic restart of the X4 RM Plus on grid power -Cold start function allowing start-up connected emergency devices in the absence of power -Automatic recharging of the batteries when power is present -These features allow the X4 RM Plus to save 50% more energy than a normal UPS Each model is equipped with both IEC outlets and FR / SCHUKO type outlets. Its USB communication port allows remote control of the UPS through the Infopower software (see description on the back), which also manages the automatic closing of files by the UPS in the event of a power failure. The X4 RM Plus also protects the ADSL line thanks to the RJ45 connectors. -On/off switch -LCD display indicating the detailed status of the UPS -Rack format allowing it to be easily integrated into a patch bay
Trade name (external documents): X4 3000 RM Plus
Series description (240 carac): The X4 RM Plus UPS range is dedicated to the electrical protection of networks and IT loads against power supply problems and electrical disturbances.
Product Description 1 H3 Title: High-performance protection
Product Description 2 H3 Title: Economic and ecological features
Product Description 3 H3 Title: Connectivity adapted to all situations
Product Description 4 H3 Title: Essential features
Product Description 1 (350 carac): Equipped with microprocessor-controlled Line Interactive technology, the X4 RM Plus UPS offer your connected equipment reliable protection. In the event of a power cut, connected equipment will remain on for up to 65 minutes depending on the load, ensuring service continuity and, if necessary, the backup of essential data.
Product Description 2 (350 carac): - Integrated charger reduces battery charging time (90% in just 4 hours) and thus ensuring maximum recharge between successive power cuts <br>- Automatic restart of the X4 RM Plus once grid power is restored <br>- Cold start function allowing emergency start-up of connected devices in the absence of power supply <br>- Automatic battery recharge as soon as power supply is restored <br>- These features allow the X4 RM Plus to save 50% more energy than a normal UPS
Product Description 3 (350 carac): Each model is equipped with both IEC outlets and FR / SCHUKO type outlets. Its USB communication port allows remote control of the UPS through the Infopower software (see description on the back), which also manages the automatic closing of files by the UPS in the event of a power failure. X4 RM Plus also protects the ADSL line thanks to RJ45 connectors.
Product Description 4 (350 carac): - an on/off switch<br>- an LCD display indicates the detailed status of the UPS<br>- Its rack format allows it to be easily integrated into A patch bay
Warranty (year): 2
SKU - 5 digit: 66065
Product condition: New
Product Technical Version: 1
Brand: INFOSEC UPS SYSTEM
Product length (mm): 460.000000
Product height (mm): 86.000000
Product width (mm): 438.000000
Packed gross weight (kg): 25.500000
Integrated cable: No
Number of 10A outlets: 8
Number of 16A outlets: 1
External battery connector: No
Outlets type: IEC outlet, FR/Schuko outlet
IEC type: C13 (10A) ; C19 (16A)
EPO slot: No
Number of 10A outlets: 8
FR/SCHUKO outlets type: 16A
UPS technology: Line Interactive
Power (VA): 3000
Power (W): 1800
Phases: Single-phase/Single-phase
Format: Exclusively rack
Safety shutter: Yes
Wall mountable system: No
Type of connection: Outlets
Nominal Voltage (VAC): 220 VAC
Dual Input: No
Connection type: Outlet
Voltage output type: AC
Wave form: Pseudo-sine wave
Indicator: LCD
Automatic Voltage Regulation (AVR): Yes
Non-flammable plastic case: Yes
Protection spectrum: Discharge, Overload, Overvoltage
Hot-swappable: No
Number: 4
Type : voltage (V): 12
Type : amperage-hour (ah): 7
Backup time @ 50% load (min): 17
Cold Start feature: Yes
Charging voltage: 54.8+/-1.5V
Recharging time (minutes): 90% in 4 to 6 hours after complete discharge
Noise level: < 45 dB
Type: Indoor
Standard static bypass (included): No
Parallelable: No
Varistor surge protection: No
Connector type: RJ45
Communication port: USB
Communication via software available: Yes
Compatible communication software: Infopower
SNMP: No
CE: Yes
RoHS: Yes
Ul: No
Power (W): 1800
Item Returns: This item can be returned

Characteristics

UPS technology

Line Interactive

Outlets type

IEC outlet, FR/Schuko outlet

Communication port

USB

Backup time @ 50% load (min)

17

Warranty (year)

2

Format

Exclusively rack

Indicator

LCD

Presentation

High-performance protection

Equipped with microprocessor-controlled Line Interactive technology, the X4 RM Plus UPS offer your connected equipment reliable protection. In the event of a power cut, connected equipment will remain on for up to 65 minutes depending on the load, ensuring service continuity and, if necessary, the backup of essential data.

Economic and ecological features

- Integrated charger reduces battery charging time (90% in just 4 hours) and thus ensuring maximum recharge between successive power cuts
- Automatic restart of the X4 RM Plus once grid power is restored
- Cold start function allowing emergency start-up of connected devices in the absence of power supply
- Automatic battery recharge as soon as power supply is restored
- These features allow the X4 RM Plus to save 50% more energy than a normal UPS

Connectivity adapted to all situations

Each model is equipped with both IEC outlets and FR / SCHUKO type outlets. Its USB communication port allows remote control of the UPS through the Infopower software (see description on the back), which also manages the automatic closing of files by the UPS in the event of a power failure. X4 RM Plus also protects the ADSL line thanks to RJ45 connectors.

Essential features

- an on/off switch
- an LCD display indicates the detailed status of the UPS
- Its rack format allows it to be easily integrated into A patch bay

Technical specifications

Technical characteristics

General specifications

UPS technology: Line Interactive
Power (VA): 3000
Power (W): 1800
Phases: Single-phase/Single-phase
Format: Exclusively rack
Safety shutter: Yes

Physical characteristics

Product length (mm): 460
Product height (mm): 86
Product width (mm): 438
Packed gross weight (kg): 25.50

Electrical protection

Non-flammable plastic case: Yes
Protection spectrum: Discharge, Overload, Overvoltage

Tel./data protection

Connector type: RJ45

Input technical characteristics

Type of connection: Outlets
Nominal Voltage (VAC): 220 VAC

Output technical characteristics

Connection type: Outlet
Voltage output type: AC
Wave form: Pseudo-sine wave

Input connection

Number of 10A outlets: 8
Number of 16A outlets: 1

Output connection

Outlets type: IEC outlet, FR/Schuko outlet
IEC type: C13 (10A) ; C19 (16A)
Number of 10A outlets: 8
FR/SCHUKO outlets type: 16A

Regulation

Automatic Voltage Regulation (AVR): Yes

Battery

Number: 4
Type : voltage (V): 12
Type : amperage-hour (ah): 7
Backup time @ 50% load (min): 17
Cold Start feature: Yes
Charging voltage: 54.8+/-1.5V
Recharging time (minutes): 90% in 4 to 6 hours after complete discharge
Material: sealed lead

Display

Indicator: LCD

Management and communication

Communication port: USB
Communication via software available: Yes
Compatible communication software: Infopower

Environment

Noise level: < 45 dB
Type: Indoor

Norms

CE: Yes
RoHS: Yes
Associated services
We found other products you might like!
Documentation and software

File Downloads

Documentation
pdf
Flyer
(Size: 2.9 MB)
Guide d'utilisation
pdf
Guide
(Size: 1.7 MB)
Package contents

Contenu du packaging

Multilingual Manual: Yes
Number of cables: 3
