Line Interactive
Characteristics
UPS technology
Outlets type
FR/Schuko outlet
Communication port
USB
Backup time @ 50% load (min)
2.4
Warranty (year)
2
Format
Exclusively tower
Indicator
LCD
Presentation
Smart Protection

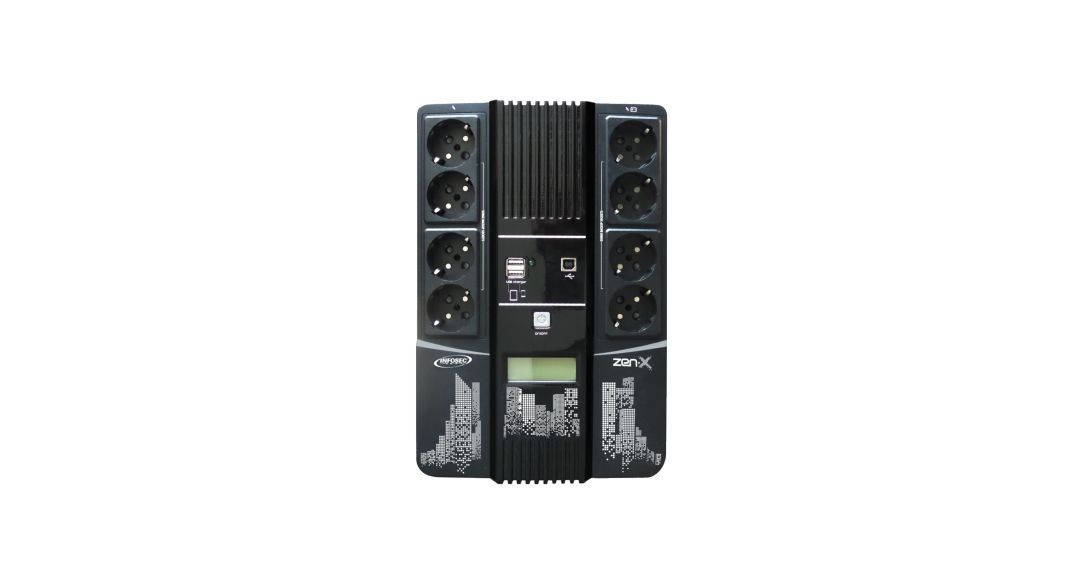

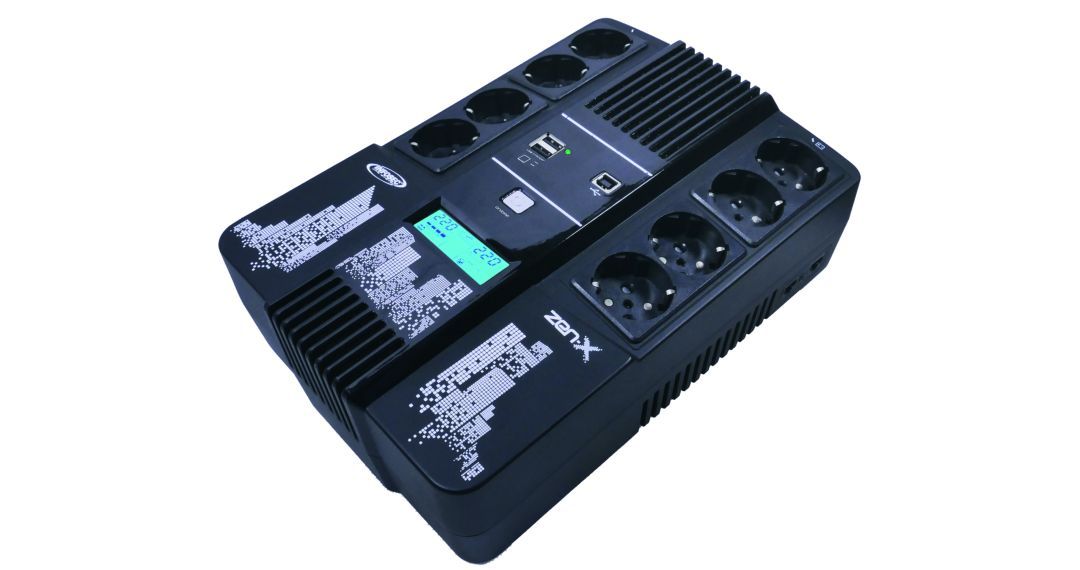

Zen-X is the ideal solution for protecting your electronic and computer equipment:
- Allows easy control thanks to a detailed display screen
- Avoids service interruptions for 3 to 4 devices (depending on the model)
- Protects up to 4 devices against lightning and surges (depending on the model)
- Provides a USB charging function for your smartphones, tablets ...
Zen Solution
Zen-X combines the strengths of a UPS and surge protector. Line Interactive technology delivers pseudo-sine wave current to your computers, small servers, and other home or electronic devices. In the event of a brief or prolonged power outage, Zen-X guarantees power to connected equipment thanks to its protected outlets which provide critical equipment with up to 15 minutes of backup time. Note: if you are busy or unavailable, the automatic shutdown software will shut down the uses and the computer in the event of an extended power cut using the Megatec UPSILON 2000 software (connection via the USB communication port - free download from our website). The Zen-X's USB charger function allows you to charge any type of mobile device such as tablets, mobile phones or other power banks (1 to 2 ports depending on the model). The Zen-X UPS protects telephones/fax/ADSL lines thanks to its RJ11/45 connectors.
Easy to live
A 2 in 1 compact device
- An LCD display including audible alarms indicating the state of your UPS
- A single on/off switch
- Wall mount system
- Cold start function if no power supply
- Automatic restart of the UPS when grid power returns
Technical specifications
General specifications
UPS technology: Line Interactive
Power (VA): 1000
Power (W): 600
Phases: Single-phase/Single-phase
Format: Exclusively tower
Safety shutter: Yes
Wall mountable system: Yes
Physical characteristics
Product length (mm): 309
Product height (mm): 93
Product width (mm): 202
Packed gross weight (kg): 7
Electrical protection
Non-flammable plastic case: Yes
Protection spectrum: Discharge, Overload, Overvoltage, Tel/data line
Tel./data protection
Connector type: RJ11/45
Input technical characteristics
Type of connection: Outlets
Nominal Voltage (VAC): 220/230/240 VAC
Output technical characteristics
Connection type: Outlet
Voltage output type: AC
Wave form: Pseudo-sine wave
Input connection
Number of 10A outlets: 8
Output connection
Outlets type: FR/Schuko outlet
Number of 10A outlets: 8
FR/SCHUKO outlets type: 16A
Regulation
Automatic Voltage Regulation (AVR): Yes
Battery
Number: 1
Type : voltage (V): 12
Type : amperage-hour (ah): 9
Backup time @ 50% load (min): 2.4
Cold Start feature: Yes
Material: sealed lead
Chargers
USB charger : quantity: 2
USB charger : power (A): 2
Display
Indicator: LCD
Management and communication
Communication port: USB
Communication via software available: Yes
Environment
Noise level: < 40 dB
Type: Indoor
Norms
CE: Yes
RoHS: Yes
We found other products you might like!
Contenu du packaging
USB cable: Yes
Multilingual Manual: Yes
License number card: Yes
Number of cables: 1
